Firewall Issues

Firewall Issues - Mudfish Master Server

This section describes about if you’re encountering issues for Mudfish Master Server to connect.

Using -O option

  • After clicking “Start” button of Windows, moves to or find “Mudfish Cloud VPN” menu.

  • Opens the property window of “Mudfish Launcher” icon by clicking the right mouse button on it.

  • Modify the command which found at “Target(T)” box that as default, the following value is set:

    "C:\Program Files\Mudfish Cloud VPN\mudrun.exe"

  • Changes the command with -O option. For example, looks like below:

    "C:\Program Files\Mudfish Cloud VPN\mudrun.exe" -O

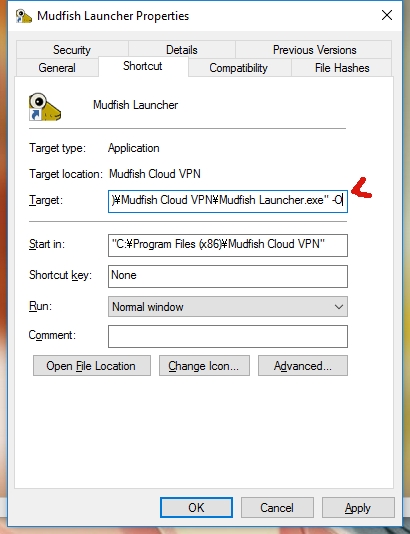

  • As result, “Target(T)” would be like below:

    ../../_images/VKP1V1.jpg
  • -O option turns on a feature using IP and port of old master server.

Using -t option

  • At the property window of “Mudfish Launcher” icon, modify the command as follows:

    "C:\Program Files\Mudfish Cloud VPN\mudrun.exe" -t

  • -t option turns on a feature sending a fake HTTP request.

Firewall Issues - Mudfish Nodes

This section describes information if you have a problem to communicate with Mudfish nodes (not master server).

Changing Connection Protocol

  • As default, Mudfish could communicate with Mudfish nodes based on TCP (port 10008) and UDP (port 10008) based. And default is UDP-based.
  • If you feel that your connections are blocked by network firewall, you can change the connection protocol from one to another
    • At ‘Setup -> Program’, you can see these options.
    • If you’re enabled Expert Mode , you can see more options for connection protocol. For examples,
      • TCP (Port 10008)
      • TCP (Port 443)
      • TCP (Port 10006)
      • UDP (Port 10008)
      • UDP (Port 53)
      • UDP (Port 10006)

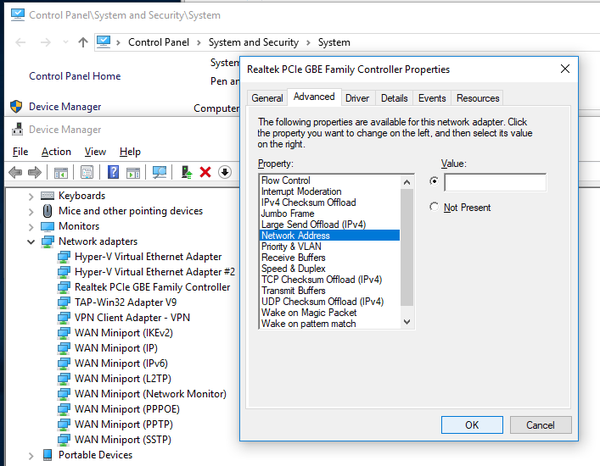

Changing Mac Address

Some network firewall blocks based on Mac address of your NIC card. With googling you can find a lot of links about how to change it for example,

../../_images/macaddress.png
